# Resource Utilization

<div data-with-frame="true"><figure><img src="https://content.gitbook.com/content/rwKRGO3QthZ6EMqqYblg/blobs/dLz3TQWfFI7AWlJ4cayJ/image.png" alt=""><figcaption></figcaption></figure></div>

### Overview

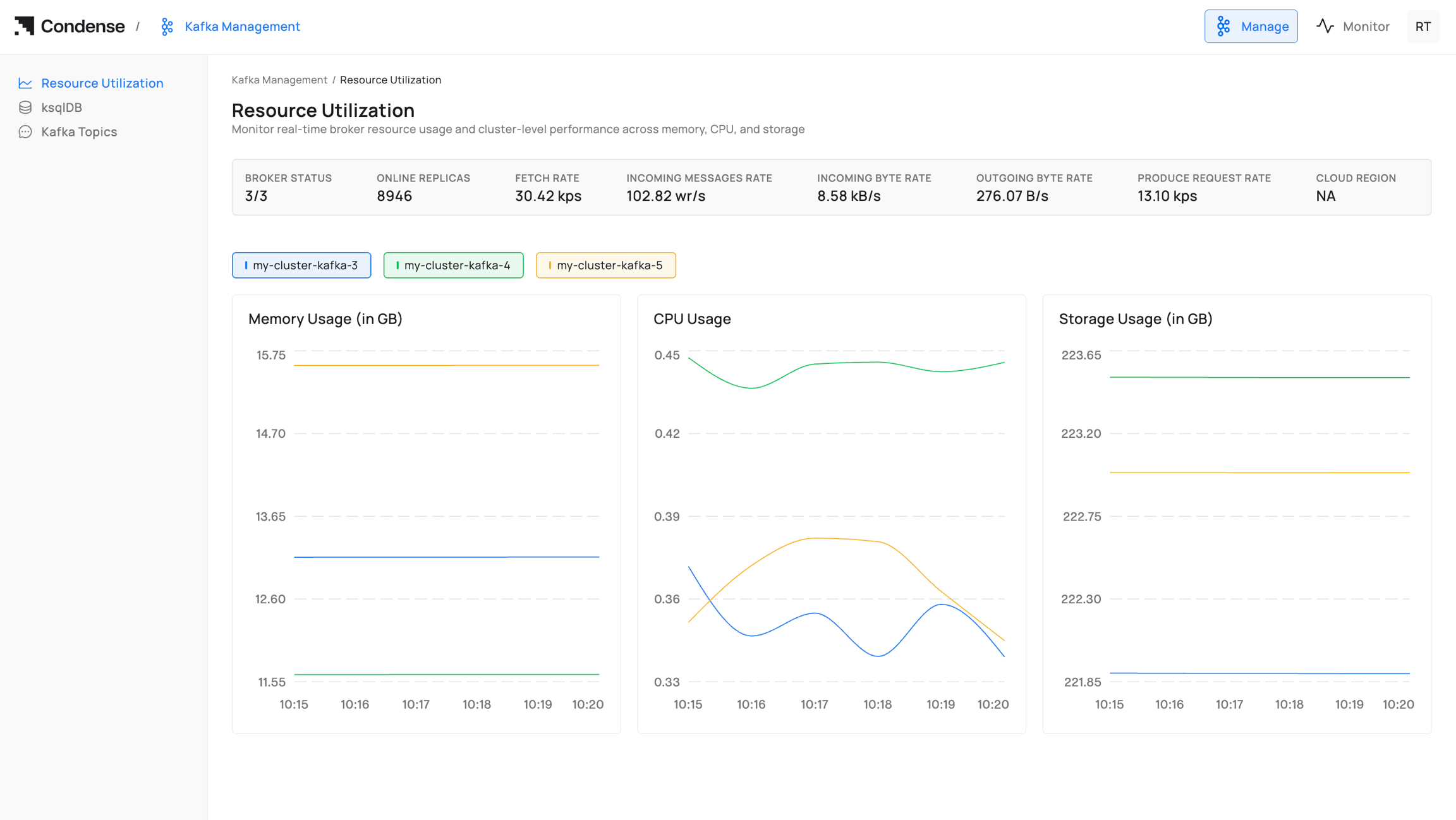

The **Resource Utilization** page in Condense provides a real-time view of Kafka cluster performance and broker-level resource usage. This dashboard helps administrators monitor key operational metrics across **memory, CPU, and storage**, as well as request and message throughput across the cluster.

The page is accessed from:\
**Kafka Management → Resource Utilization**

### Cluster Summary

At the top of the page, Condense displays an aggregated cluster status panel with the following key indicators:

| Field                             | Description                                                                  |
| --------------------------------- | ---------------------------------------------------------------------------- |
| **Broker Status**                 | Number of brokers online versus the total expected in the cluster.           |
| **Online Replicas**               | Total number of replicas currently in sync and online across topics.         |
| **Fetch Rate (kps)**              | The rate of fetch requests per second (in thousands) handled by the cluster. |
| **Incoming Messages Rate (wr/s)** | The number of messages written into the cluster per second.                  |
| **Incoming Byte Rate (kB/s)**     | The volume of incoming data in kilobytes per second.                         |
| **Outgoing Byte Rate (B/s)**      | The volume of data sent from the cluster in bytes per second.                |
| **Produce Request Rate (kps)**    | The rate of produce requests per second (in thousands) received by brokers.  |
| **Cloud Region**                  | The deployment region for the Kafka cluster (if applicable).                 |

This panel provides a consolidated health snapshot of the Kafka cluster.

### Broker-Level Resource Metrics

Below the cluster summary, the dashboard displays per-broker utilization charts. Each broker in the cluster is identified with a unique label (e.g., `my-cluster-kafka-3`, `my-cluster-kafka-4`, `my-cluster-kafka-5`). Metrics are color-coded for easy distinction.

#### Memory Usage (in GB)

* Shows real-time memory consumption per broker.
* Values are expressed in gigabytes.
* Allows identification of brokers under disproportionate memory load.

#### CPU Usage

* Displays CPU utilization per broker as a ratio (0–1 scale).
* Tracks processing load trends across brokers.
* Useful for detecting uneven request distribution or overloaded nodes.

#### Storage Usage (in GB)

* Indicates disk space usage per broker in gigabytes.
* Helps monitor storage capacity and anticipate the need for scaling or partition reassignment.

### Field Reference

| Chart             | Metric                      | Unit              | Scope        |
| ----------------- | --------------------------- | ----------------- | ------------ |
| **Memory Usage**  | Allocated and used memory   | GB                | Broker-level |
| **CPU Usage**     | Processor utilization ratio | Value between 0–1 | Broker-level |
| **Storage Usage** | Disk space usage            | GB                | Broker-level |

### Usage Notes

* All metrics are collected from Kafka brokers and displayed in real time.
* Historical data can be reviewed by adjusting the time interval controls (default: minute-level sampling).
* Resource imbalance across brokers may indicate:
  * Uneven partition distribution
  * Overloaded producers or consumers targeting specific brokers
  * Hardware performance differences
