Condense leverages a robust and secure architecture to facilitate efficient data ingestion.\
This section analyses the key components of the system and their interactions.

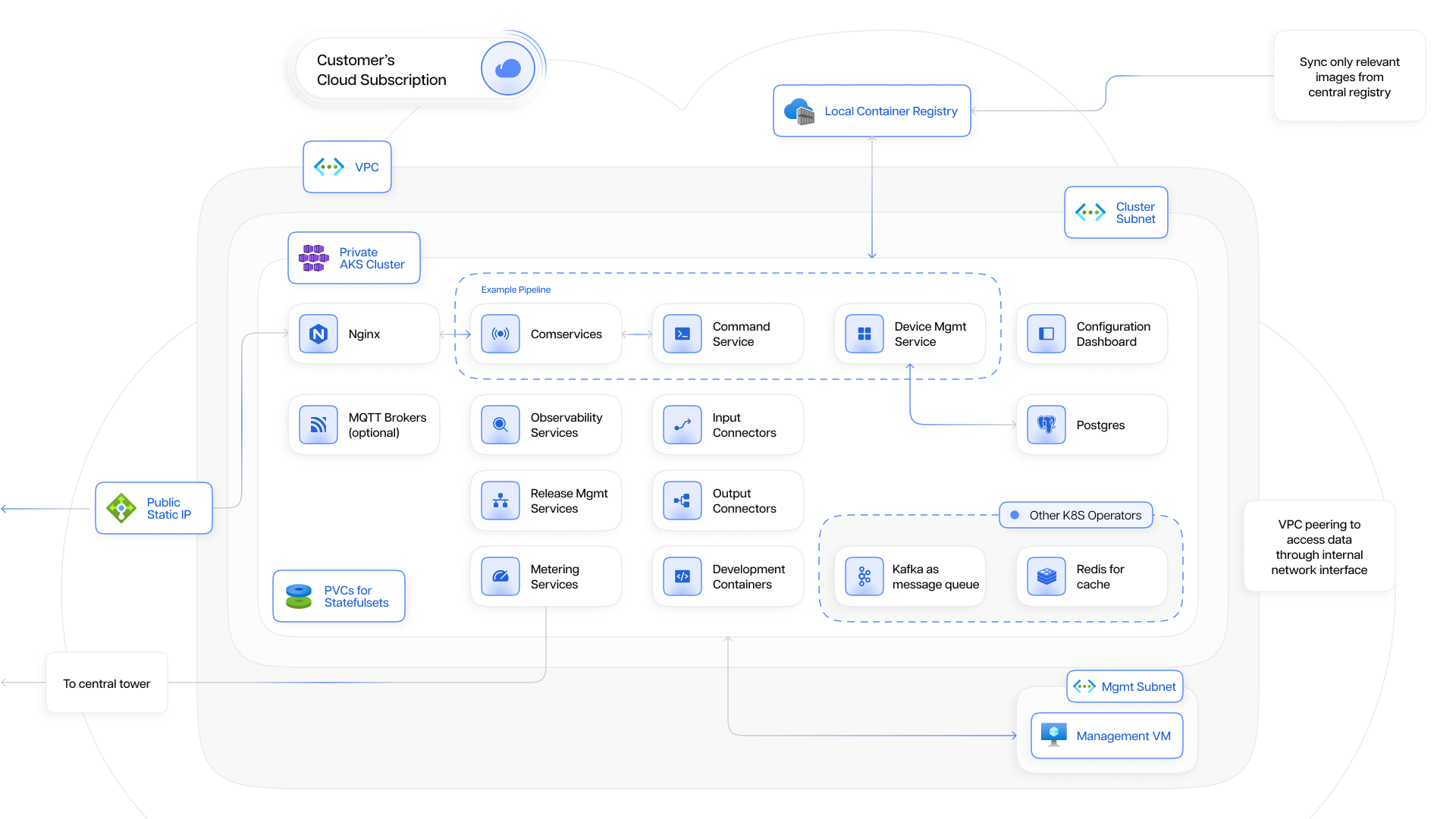

## Condense Architecture - Microsoft Azure

<figure><img src="https://1775139360-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvbacpakLuL4x2VBp2174%2Fuploads%2FeWtFnw7tjcINTLSfka8f%2FCondense-Azure.png?alt=media&#x26;token=ad58f61e-b379-4a1c-8eae-db14d7444818" alt=""><figcaption></figcaption></figure>

## Condense Architecture - Amazon Web Services (AWS)

<figure><img src="https://1775139360-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvbacpakLuL4x2VBp2174%2Fuploads%2FrygIWF79I3lY0QJJGPvA%2FCondense-AWS.png?alt=media&#x26;token=57874cd8-b34b-4f61-837a-f75eb72f3a7a" alt=""><figcaption></figcaption></figure>

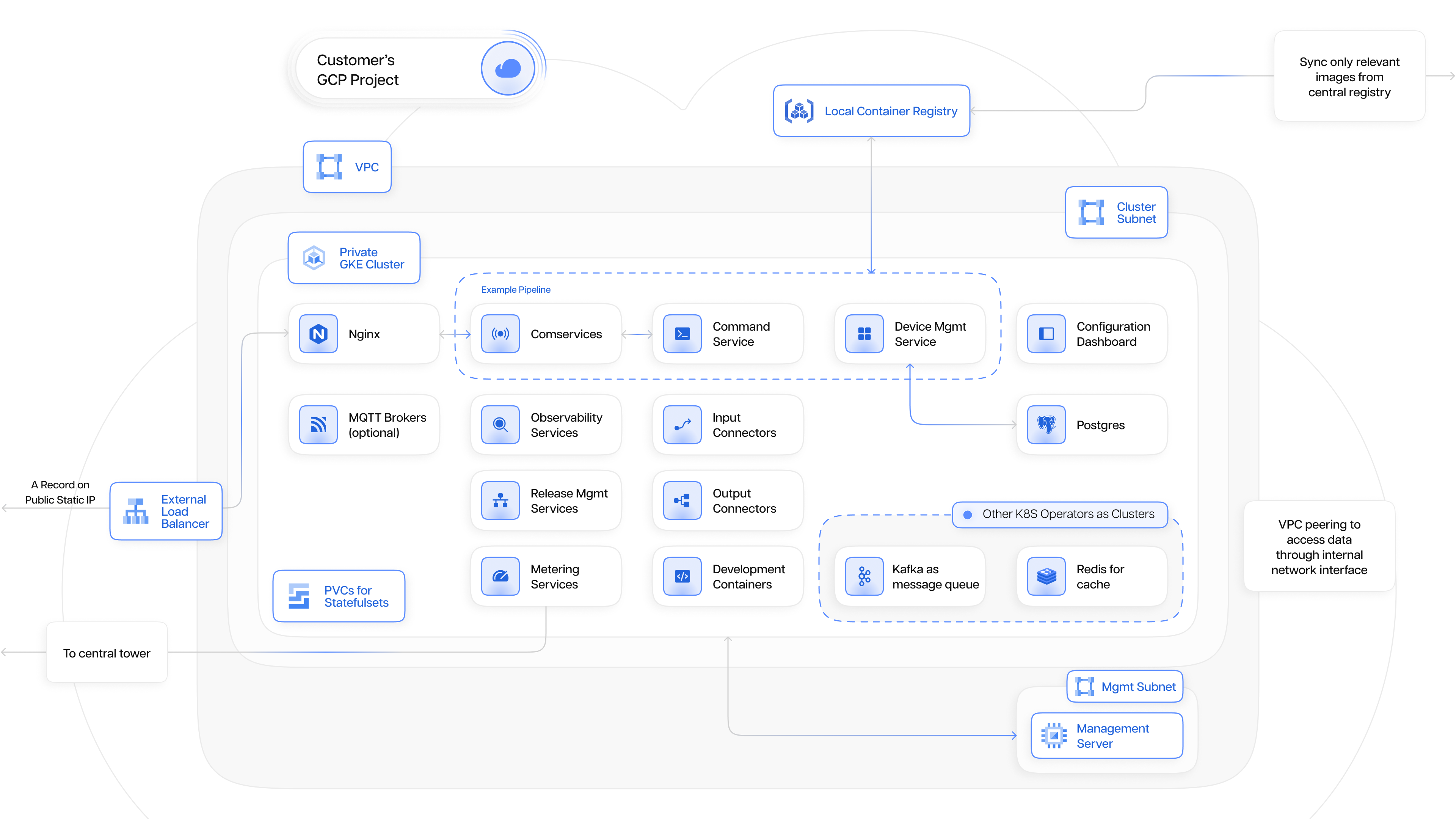

## Condense Architecture - Google Cloud Platform (GCP)

<figure><img src="https://1775139360-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvbacpakLuL4x2VBp2174%2Fuploads%2FzkYOwDXubR1wH23r93Rh%2Fimage.png?alt=media&#x26;token=b678e871-8272-41e3-92d6-e276e9b15bc1" alt=""><figcaption></figcaption></figure>

## Architecture Components

Condense employs a three-tier architecture, ensuring clear separation of concerns and promoting efficient communication between components:

<table data-card-size="large" data-view="cards"><thead><tr><th></th><th></th><th data-hidden data-card-cover data-type="files"></th></tr></thead><tbody><tr><td><h3><strong>Cloud Provider</strong></h3></td><td>The cloud marketplace (e.g., Azure, AWS and GCP) serves as the platform for deploying Condense. Users access Condense through the provider's interface.</td><td><a href="https://1775139360-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvbacpakLuL4x2VBp2174%2Fuploads%2Fp3hOLMRxZ5Smc6SNiW0W%2FCondArchVec2.png?alt=media&#x26;token=55d7e1d2-02ad-4384-98d9-c47b181bd548">CondArchVec2.png</a></td></tr><tr><td><h3>Zeliot Central Tower</h3></td><td>This central hub manages deployments, user authentication, release updates, and monitors the overall health of Condense instances.</td><td><a href="https://1775139360-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvbacpakLuL4x2VBp2174%2Fuploads%2FK6v6kznMpKd0vptNxool%2FCondArchVec3.png?alt=media&#x26;token=b7aab83d-f3a2-4197-beba-e501287ec405">CondArchVec3.png</a></td></tr><tr><td><h3>Condense Application</h3></td><td>Deployed within the user's cloud environment, this application processes data from mobility devices, performs transformations, and sends it to designated outputs.</td><td><a href="https://1775139360-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvbacpakLuL4x2VBp2174%2Fuploads%2FHSso3BPsqoWjpq7xt5fV%2FCondArchVec4.png?alt=media&#x26;token=c1d7666e-b2f3-4908-9f6f-ef38661a7e16">CondArchVec4.png</a></td></tr></tbody></table>
